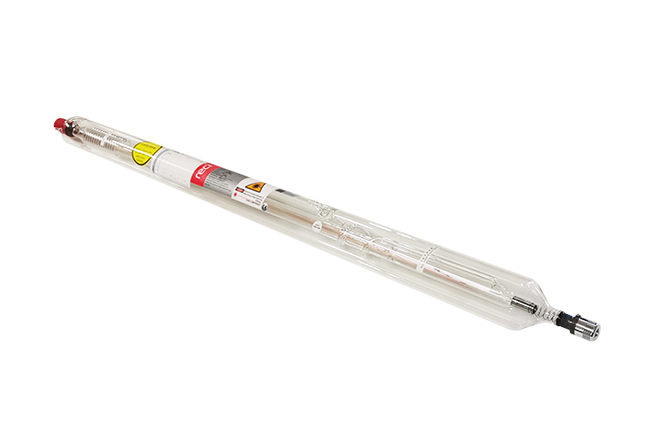

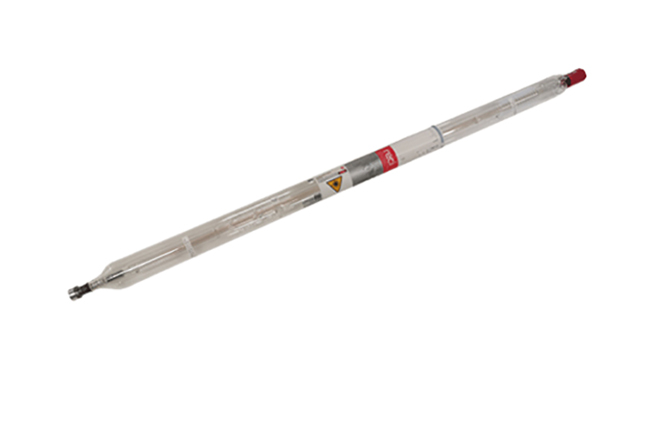

CO₂ Laser Tube – T Series
- Product Characteristics:
- 01 Beam quality: >95% TEM00 mode
02 Optical resonator advantage: enhance power
03 Advanced radioactive materials coated lenses

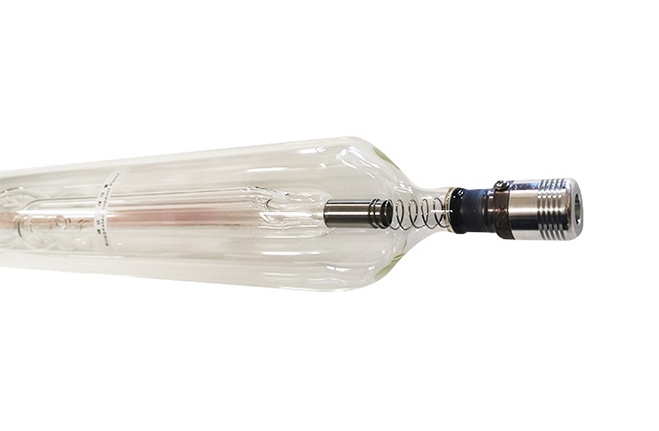

04 Alternative technique: metal-glass sintering
Product Category: CO2 Laser Tube
Description: T series, with high quality and cost-effective price, was launched solemnly in 2019. In addition, more than a decade witnessed three qualitative leaps of W series, respectively The first generation of W series adopted the metal end with the lens directly sticking to the glass nozzle and water cooling to the lens. The second generation added adjustable screws on both sides to improve the mounting accuracy, which upgraded the product yield and output mode generally. The third generation has abandoned the adjustable screws. The alternative technique is metal-glass sintering, which maintains extremely high stability of both-end structures and no change of output mode.
Type |
T1 |
T2 |
T4 |
T6 |
Rated Output Power(W) |
75 |
90 |
100 |
130 |
Max Output Power(W) |
90 |
100 |
130 |
160 |
Length(mm) |
1110 |
1250 |
1400 |
1650 |
Diameter(mm) |
Φ65 |
|||
Catalyst |
Yes |
|||
Warranty Period(days) |
300 |
