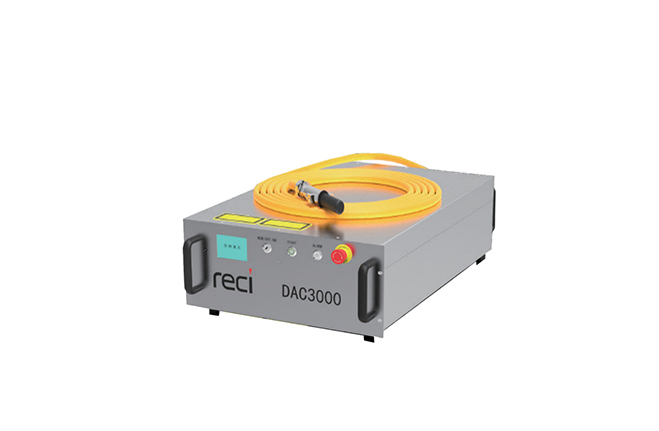

High Power Direct Diode Laser——DAC3000
- Product Characteristics:
- 01 High electro-optic conversion efficiency
02 Low power consumption and failure rate
03 The output power of the laser is above 3000W
04 Optical fiber laser output mode
Inquiry Online
Message
DownloadProduct Description
Product Category: High Power Direct Diode Laser
Description: DAC series direct diode lasers are independently developed and produced by RECI laser. High power direct diode laser is based on high brightness diode laser module and fiber combiner. Compared with similar products, it has compact volume, stronger expansion and higher cost performance. It can be used in laser re-manufacturing fields such as metal welding, high-speed laser cladding, rapid prototyping of large parts (3D printing), repairing, etc.
Product parameters
|
Model |
DAC3000 |
|
Output Power(W) |
3000 |
|
Wavelength(nm) |
915 |
|
Operating Mode |
CW/Modulate |
|
Max Modulation Frequency（kHz） |
50 |
|
Power Instability(%) |
< 3 |
|
Red Laser |
YES |
|
Beam Delivery Optics |
QBH |
|
Output Fiber Diameter(μm）/NA |
600/0.22 |
|
Delivery Fiber Length(m) |
10 /20 (Optional) |
|
Operating Voltage(VAC) |
380 |
|
Max Power Consumption(W) |
7500 |
|
Control Model |
Ext. RS232/Ext. AD/Hyper terminal |
|
Power Range(%) |
10~100 |
|
Ambient Temperature(℃) |
5-40 |
|
Ambient Humidity(％) |
<70 |
|
Cooling Temperature(℃) |
25±5 |
|
Coolant Flow(L/min) |
＞40 |
|
Size W*H*D（mm³） (with hand-piece) |
483×213×825 |
|
Weight（kg） |
<90 |
Products Applications
