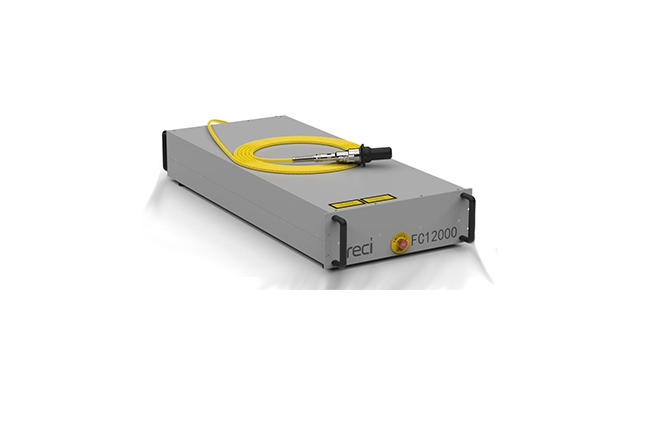

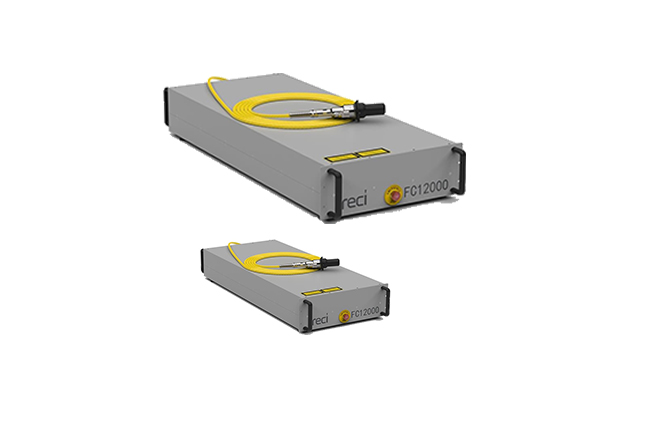

Single Module Fiber Laser Source 12000W
- Product Characteristics:
- 01 High average power: up to 12000W
02 Good beam quality: M2= =1.3~7
03 The output fiber length is customizable
05 High electro-optic conversion efficiency: >33%
Inquiry Online
Message
DownloadProduct Description

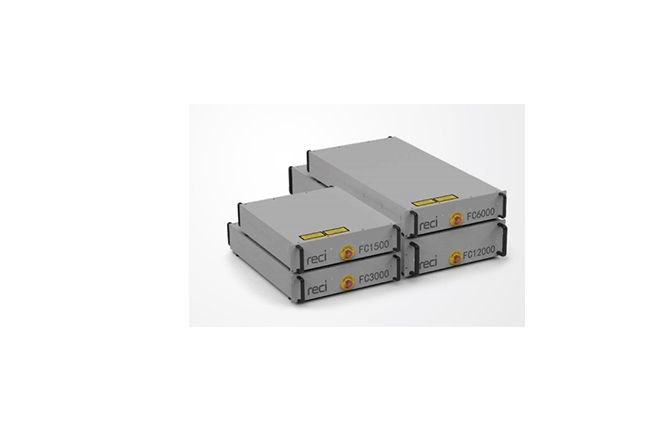

Product Category: 1.5-12kw fiber laser
Description: FC series high-power single-mode continuous-wave fiber laser is developed and produced by Reci Laser. The average power exceeds 3000W with single resonant cavity and single-mode beam quality by solving the obstacle of transverse mode instability (TMI), stimulated Raman scattering (SRS) and poor beam quality. This series products can be widely used in fine cutting, metal welding, surface treatment, 3D printing and rapid prototyping, due to the high average power, multiple anti-high-reflection, high beam quality, and high electro-optic conversion efficiency.
|
Model |
FC 12000 |
|
Output Power(W) |
12000 |
|
Central Wavelength(nm) |
1080±3 |
|
Operating Mode |
CW/Modulate |
|
Max Modulation Frequency（kHz） |
20 |
|
Power Instability(%) |
< 3 |
|
Red Laser |
Yes |
|
Beam Delivery Optics |
Q+ /LOE |
|
Output Fiber Diameter(μm） |
100 |
|
Operating Voltage(VAC) |
380V±10%、50/60HZ |
|
Delivery Fiber Length(m) |
20 |
|
Operating Voltage(VAC) |
380V±10%、50/60HZ |
|
Max Power Consumption(W) |
35000 |
|
Control Model |
Ext. AD/Loc. AD |
|
Power Range(%) |
10~100 |
|
Ambient Temperature(℃) |
5~40 |
|
Ambient Humidity(％) |
<70 |
|
QBH Cooling Water Temperature(℃) |
Room temperature |
|
Cooling Temperature(℃) |
25(Summer 27) |
|
Size W*H*D（mm³） |
482.6×169×1173 |
|
Weight（kg） |
<100 |
